Production – ETHYLENE VAPORIZER EA 414  |
|
| Realization: 2024 (ZA2300356) | |
| Vyrobeno dle: PED 2014/68/EU, ČSN 690010 | |
| Material: | P355NL1, P420QH, P215NL, P280QH, 42CrMo5-6, Dynagraph |
| Diameter: | 2 068 mm |
| Lenght: | 8 270 mm |
| Weight: | 24 660 kg |
References
ORLEN Unipetrol RPA s.r.o.
| Production – Cooler 2. St GB 201 –2 pcs: EA204A, EA204B |
|
| Realization: 2024 (ZA2300226) | |
| Made according to: PED 2014/68/EU, ČSN 690010 | |
| Material: | P265GH, 1.4462, P280GH, P305GH, P245GH, 42CrMo5-6, Dynagraph |
| Dimensions 1 piece | |
| Diameter: | 1 892 mm |
| Lenght: | 8 880 mm |
| Weight: | 21 995 kg |
| Total weight – 2 pcs: | 43 990 kg |
ORLEN Unipetrol RPA s.r.o.
| Production – DEETANIZER BOILER – from 2 pieces: EA 401 A, EA 401R |
|
| Realization: 2024 (ZA2300231) | |
| Made according to: PED 2014/68/EU, ČSN 690010 | |
| Material: | P265GH, P280GH, 42CrMo5-6, Dynagraph |
| Dimensions 1 piece | |
| Diameter: | 1 760 mm |
| Lenght: | 5 296 mm |
| Weight: | 9 400 kg |
| Total weight – 2 pcs: | 18 800 kg |
IG SERVICE s.r.o.
REALIZATION: 2023 (ZA2300180)  |
|
| Production and delivery: Preheater – E4502A / Condenser – E4503A | |
| Manufacturing standard: | PED 2014/68/EU, EN 13445 |
| Material: | P265GH |
| Diameter: | 955 – 1 075mm |
| Lenght: | 6 570 – 8 585 mm |
| Weight: | 5 330 – 7 160 kg |
P & P Industries AG
Destination: Mitsubishi Gas Chemical Co.  NETHERLANDS |
|
| Realization: 2023 (ZA2200572) | |
| Production and delivery: RFG 2200713 STEAM BOILERS | |
| Material: | 16 Mo3, P265 GH |
| Manufacturing standard: | PED 2014/68/EU |
| Width x height: | 5 000 x 7 300 mm |
| Lenght: | 8 200 mm |
| Weight: | 53 500 kg |
Teplarna Otrokovice, a.s
|
|
| Realization: 2021 (OP2000027) | |
| RETORT – DESIGN, PRODUCTION AND ASSEMBLY | |
| Material: | W.Nr. 1.4845 |
| Lenght: | 10 000 mm |
| Width: | 3 100 mm |
| Hight: | 2 100 mm |
| Weight: | 6 000 kg |
Unit for thermochemical conversion of solid fuels and secondary raw materials into gaseous and liquid fuels, usable in existing boiler houses. Coal can be fed into the retort and the result will be gas (coal gas), oil (coal tar) and solid residue (semi-coke).
LIBERTY Ostrava, a.s.
| Production and assembly – manufacture and replacement of the blast furnace gas combustion chimney |
|
| Realization: 2022 (ZA2100562) | |
| DESIGN, PRODUCTION AND ASSEMBLY | |
| Material: | 11 523.1 |
| Lenght: | 8 600 mm |
| Floor plan of the upper platform: | 6 000 x 6000 mm |
| Connection at height: | 42 500 mm |
| Weight: | 17 600 kg |

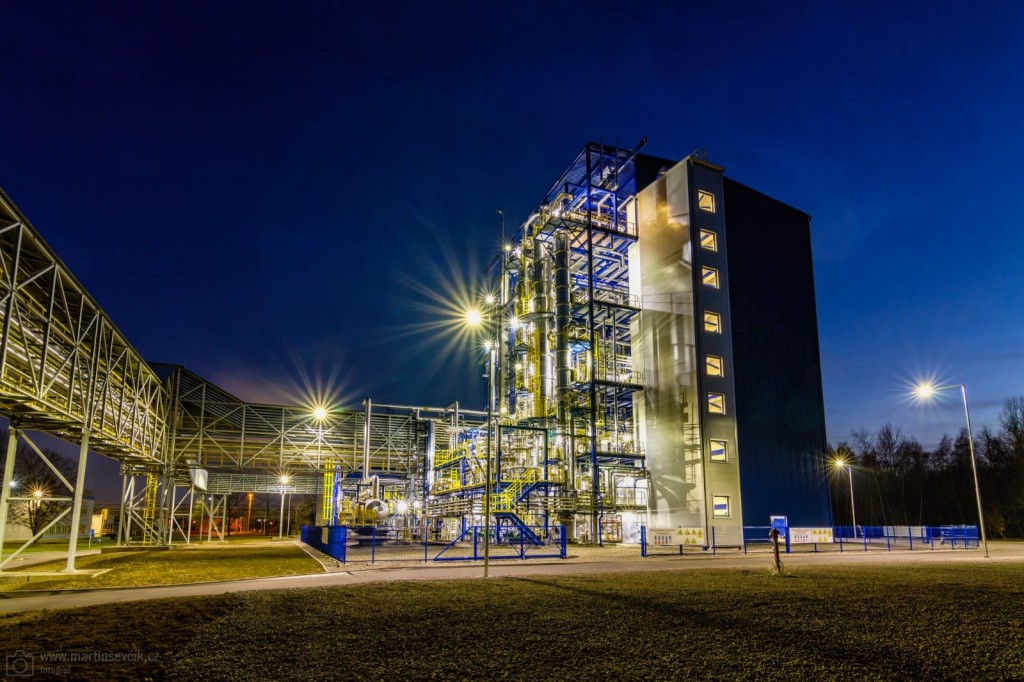

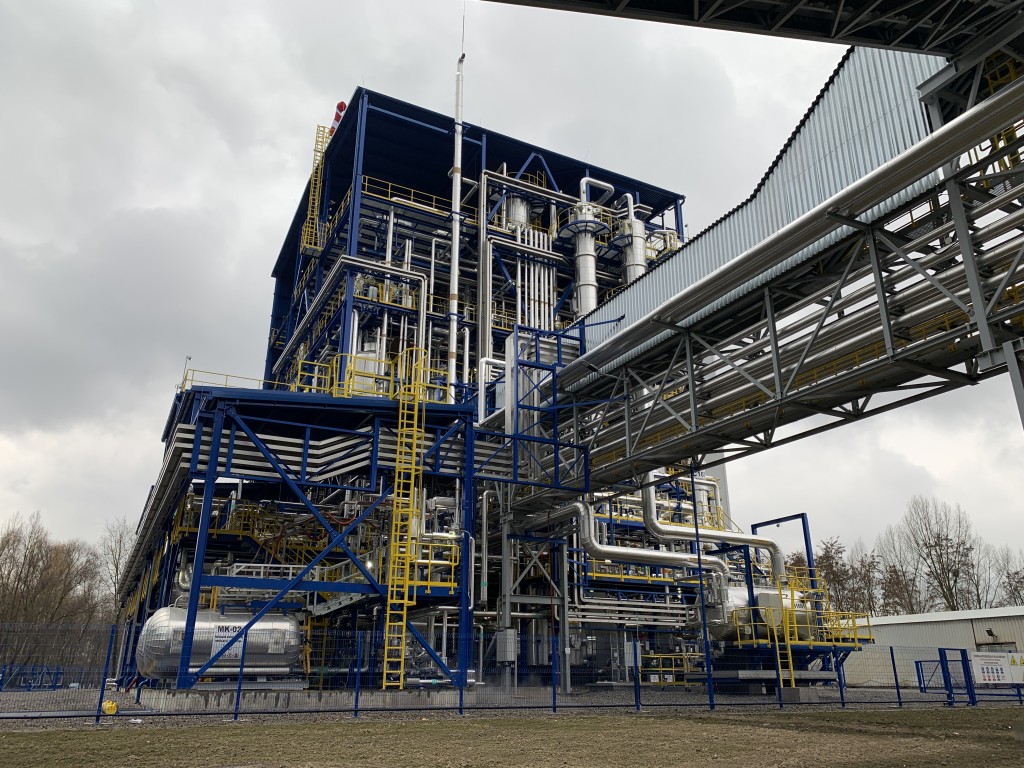

ZVU Engineering a.s.

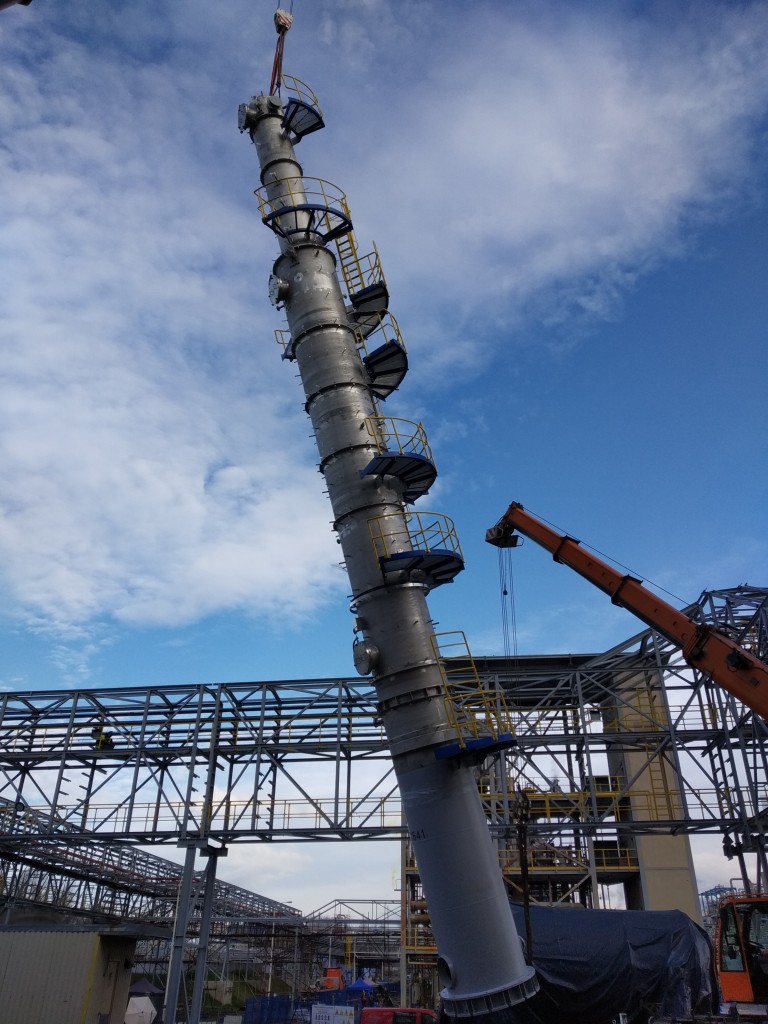

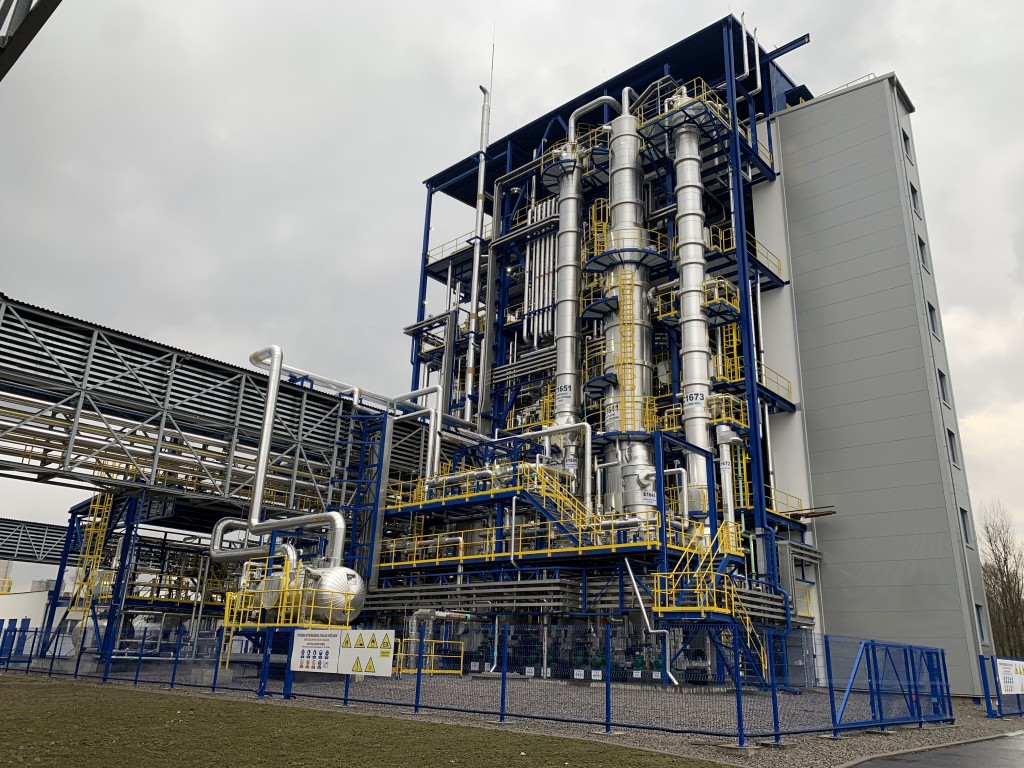

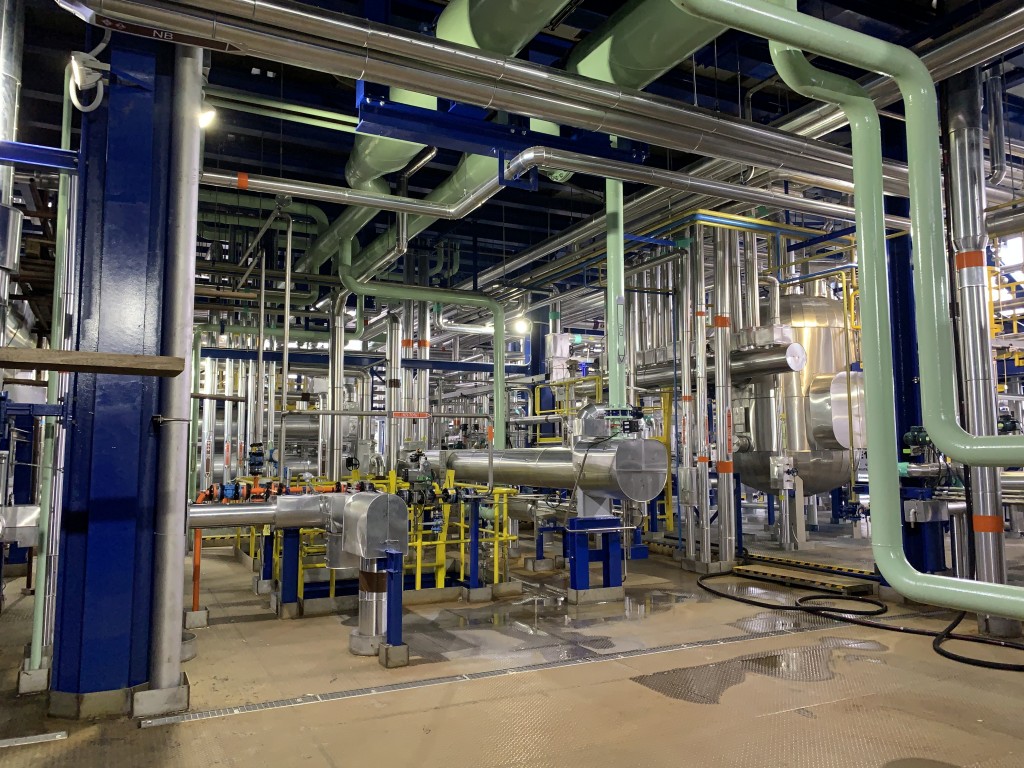

| Production and complete assembly of technology – adiabatic nitration unit – 120 kt/year |
|
| Realization: 2020-2021 (ZA2100156) | |
| Destination: BorsodChem MCHZ s.r.o. Ostrava |
Manufacture and Assembly of 20 apparatuses and exchangers, of which 5 columns
| Material: | 1.4404, 1.4539, P265GH |
| Lenght: | Length up to 27 650 mm |
| Weight: | Up to 22 365 kg/pc |
INTECHA spol. s r.o.
| Manufacture and assembly of 14 exchangers |
|
| Realization: 2022 (ZA2000562) | |
| Material: | W.Nr. 1.4301, P265GH |
| Diameter: | 273 – 826 mm |
| Lenght: | 2 247 – 4 200 mm |
| Weight: | 360 – 5 182 kg |
ZVU Engineering, a.s.
| MANUFACTURE AND ASSEMBLY – Condenser E4002 |
|
| Realization: 2021 (ZA2100173) | |
| Material: | TITAN Gr.2, P265GH, 1.4301 |
| The technical requiremments: | EN 13 445, 2014/68/PED |
| Diameter: | 1 345 mm |
| Lenght: | 7 620 mm |
| Weight: | 4 375 kg |
Lenzing BIOCEL Paskov a.s.
| Production and assembly – PIPE EXCHANGER W007 – 1 piece |
|
| Realization: 2021 (ZA2100056) | |
| Material: | W.Nr. 1.4436, 1.4438, 13 445 |
| Lenght / diameter: | 8 990 / 3 600 mm |
| Number / diameter / lenght of pipes | 3 522 / 34×1 / 6 300 mm |
| Weight: | 30 050 kg |
ZVU Engineering, a.s.
| Production – Catch Tank- 1 piece |
|
| Realization: 2021 (ZA2100032) | |
| The technical requiremments: PED 2014/68/EU, EN 13445 | |
| Material: | W.Nr. 1.4404 |
| Lenght: | 4 550 mm |
| Diameter: | 2 100 mm |
| Weight: | 3 000 kg |
ZVU Engineering, a.s.
| Destination: area BorsodChem MCHZ, CZ |
|
| Realization: 2020 (ZA19000627) | |

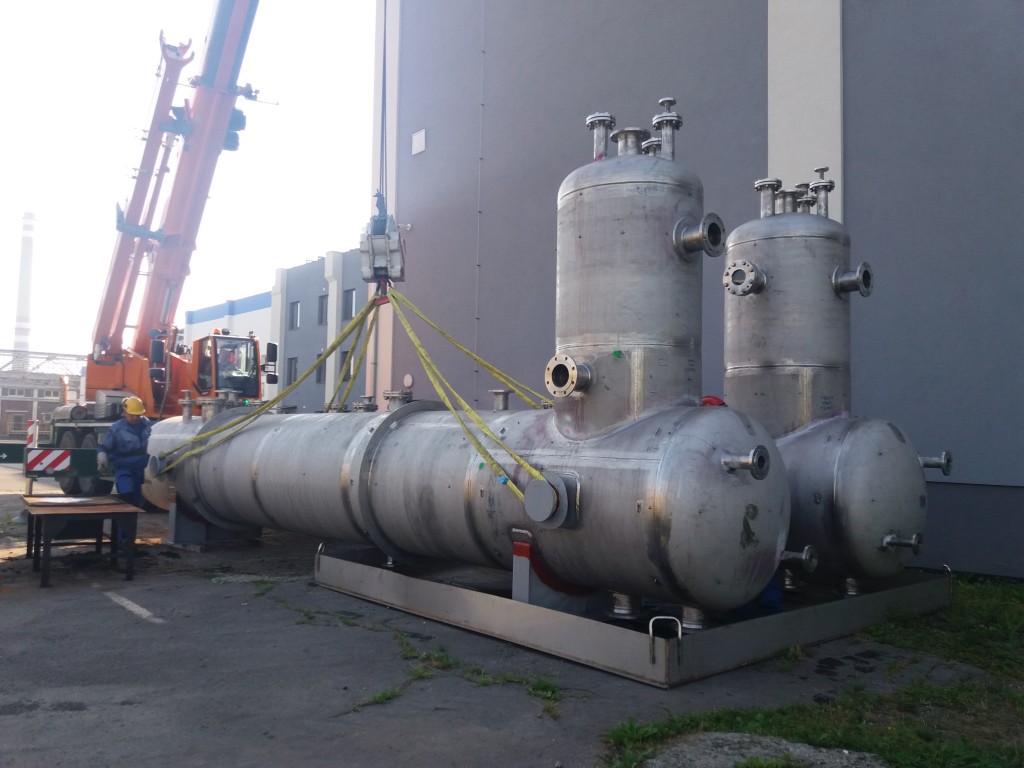

| Production and assembly – 2 pieces – Alcaline Washer Decanter | |
| Material: | W.Nr. 1.4404 |
| Diameter: | 1 250 mm |
| Lenght: | 9 350 mm |
| Weight: | 5 450 kg / pc |
CASALE SA (Switzerland)
Destination: Ghubakha, RUSSIA  |
|
| REALIZATION: 2018 – 2019 (ZA1700645) | |
| Production of segments for 6 tanks. | |
| The technical requiremments: | ASME Code Sec. II + V + IX ED. 2017, API 650 VIII |
| Material: | SA-516 Gr.60, SA-350 Gr.LF2 Cl1, SA-479 TP316L, SA240GR 304/304L, SA-403 WP304/304L, SA-182 F304/304L, SA 516 Gr.60, SS Gr. 304L, Gr. 316L |
| Dimensions: | Tank height: 5 500 – 12 000 mm, Diameter: 4 500 – 12 000 mm, |
| Thickness of the material: | 5 – 50 mm |
| Weight: | 7 500 – 75 000 kg |
Chemoprojekt, a.s.
Destination: Basrah, South Refineries Company, IRÁK  |
|
| Realization: 2017 (ZA1700371) | |
| Production and installation of PRESSURE VESSELS (2 pcs) | |
| Realization 1: | Production in the area of Shipyard Chvaletice. |
| Volume: | 315 m3 |
| Material: | SA 516 GR. 70 |
| Dimensions: | ID 5 000 x 18 mm, L t.l. = 15 000 mm, |
| Operating pressure: | 1,2 kg/cm2 (1,18 bar) |
| Weight: | 50 000 kg |
| Realization 2: | Production in Ostrava. Oversized transport to Hamburg (Germany). |
| Volume: | 105 m3 |
| Material: | SA 516 GR. 70 |
| Dimensions: | ID 3 000 x 15 mm, L t.l. = 10 000 mm, |
| Operating pressure: | 3,5 kg/cm2 (3,43 bar) |
| Weight: | 22 300 kg |
Stickstoffwerke Piesteritz GmbH
Destination: Stickstoffwerke Piesteritz GmbH – GERMANY  |
|
| Manufacturing of 8 parts of Column for Nitric Acid. | |
| Manufacturing standard: | AD 2000 |
| Material: | W.Nr. 1.4361 – Antinit A610 (Böhler) |
| Dimensions: | a) 4 pcs – 2 200 x 1 100 x 1 100 mm, |
| b) 4 pcs – 950 x 1 050 x 1050 mm, | |
| Weight: | 830 kg/pc and 160 kg/pc |
ŠKODA JS a.s.
Destination: Nuclear Power Plants – UKRAINE  |
|
| Manufacturing – VENTURI SCRUBBERS | |
| Material: | 08CH18H10T, 1.4541 |
| Počet: | 11 pcs |
| Weight: | 22 000 kg |
| Dimension: | D = 3 400 mm, L = 5 500 mm |
MONTIS BAU s.r.o.
| Destination: Arcelor Mittal |
|
| Manufacture of smoke valve shells – 2 pcs | |
| Material: | Carbon steel – S355, S235, P245 |
| Total Weight: | 102 697 kg |

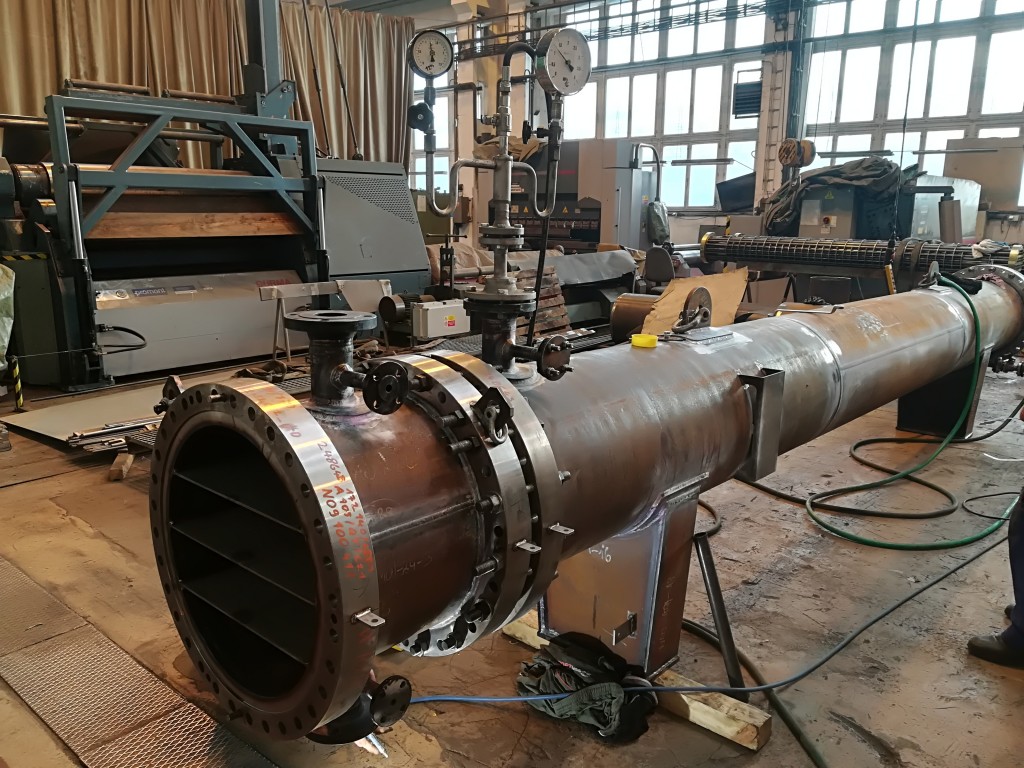

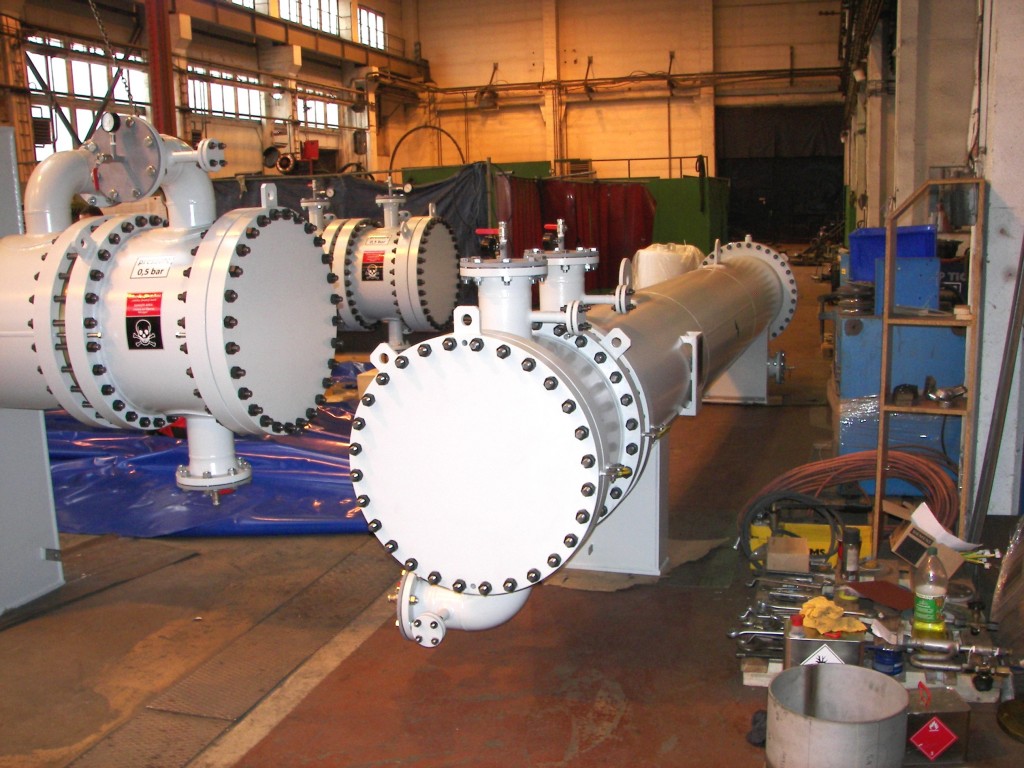

CHEMOPROJEKT, a.s.
Destination: IRAQ – Basra Rafinery  |
|

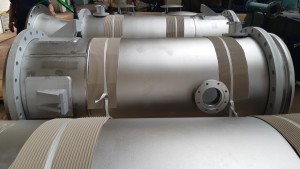

| Production and delivery – 11 pcs EXCHANGERS. Manufacturing according to ASME Sec. VIII Div. 1. (seaworthy packing). | |
| Material: | SA480/SA480M, SA20/SA20M, SA788/SA788M, SA530/SA530M, ER70S-6, ER309LSi, ER308LSi |
| Lenght: | 3 800 – 7 300 mm |
| Parts diameter and thickness: | 250 – 650 mm, basic material 5 – 20 mm |
| Weight: | 1 500 – 10 000 kg |

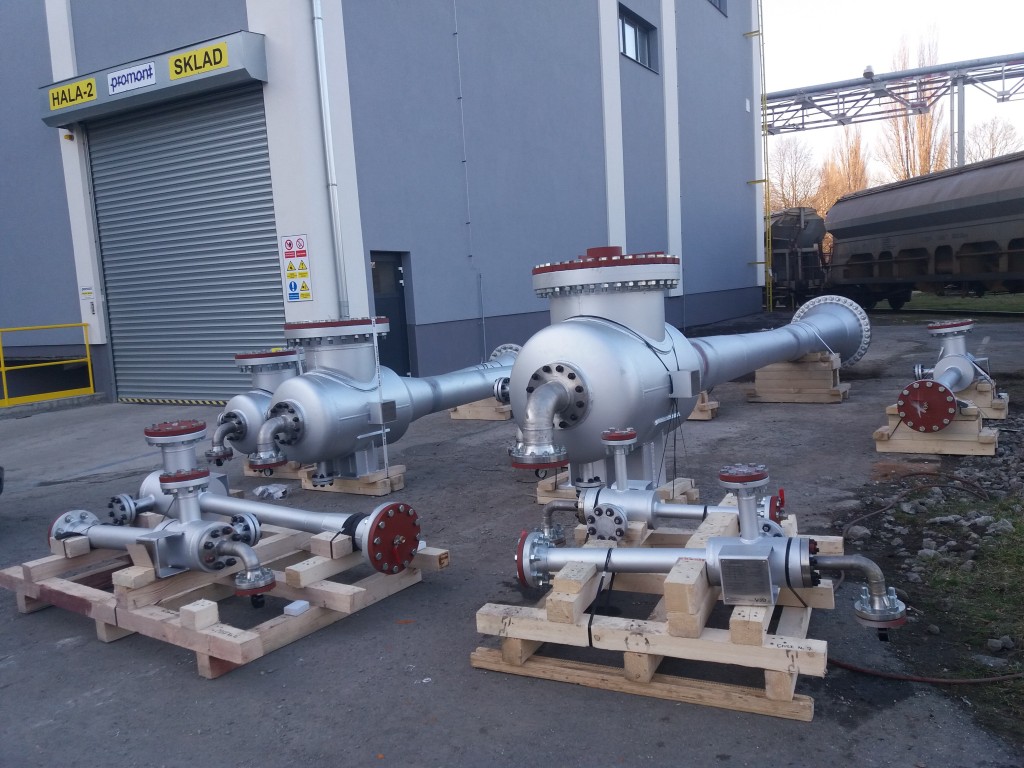

GEA Wiegand GmbH
Destination: INDIA  |
|

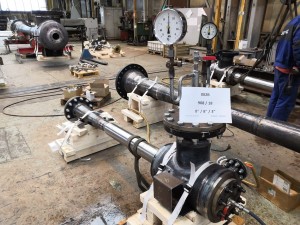

| Production: 9 pieces – EJECTORS. Manufacturing according to ASME Code | |
| Material: | SA516 Gr.60, SA 530, 304/304l |
| Lenght: | from 800 mm to 9,000 mm |
| Dimensions: | from DN1 ½“/ 2“ to DN28“/30“ |
| Weight: | 58 kg to 2,100 kg |
CHEMOPROJECT NITROGEN, a.s.
Destination: Sweden (YARA AB Köping)  |
|

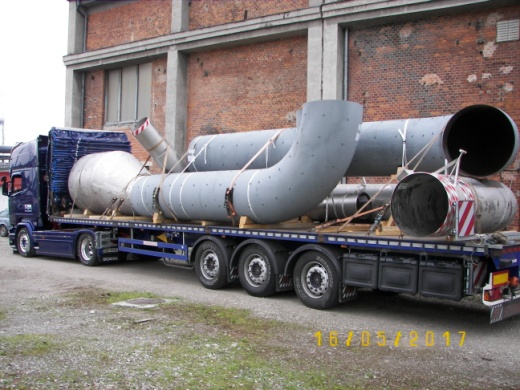

| Production and supply of pipeline routes (GAS DUCT). 24 ROUTES | |
| Materiál: | W.Nr. 1.4306, W.Nr. 1.4541, P355NL1 |
| Hmotnost: | 102 697 kg |
| Rok výroby: | 2016 – 2017 |
The project was completelly managed by company PROMONT, a.s., e.g. the preparation of drawing documentation based on datasheets, manufacturing, testing, surface tretament, vendor documentation and preparation for expedition.
CHEMOPROJECT NITROGEN, a.s.
| Destination: INDIA |
|
| Production SCRUBBER (Jet Venturi + Separator) | |
| Material: | W.Nr. 1.4571, 1.4301 |
| The technical requirements: | ASME Code |
| Lenght / Diameter: | 13 000 mm / 1 410 mm |
| Weight: | 9 100 kg |
| Year of manufacture: | 2016 |
BIOCEL Paskov, a.s.
| Production and assembly – Tube Heat Exchanger – 2 pcs |
|
| Material: | W.Nr. 1.4436 (316L) |
| Length / Diameter: | 8 780 / 3 200 mm |
| Number / diameter / length of the pipes: | 3 522 / 34×1 / 6 300 mm |
| Weight: | 34 433 kg / ks |
| Year of manufacture: | 2016 a 2017 |
CHEMOPROJECT NITROGEN, a.s.
Destination: Čerepovec – RUSSIA  |
|
| Production 11 pcs – Flters with screens | |
| Material: | W.Nr. 1.4301 / 4306 |
| The technical requirements: | AD 2000 |
| Height: smallest / largest: | 1 821 mm / 3 175 mm |
| Weight: | 443 – 961 kg |
| Year of manufacture: | 2016 |
CHEMOPROJECT NITROGEN, a.s.
Destination: AUSTRALIA – Orica  |
|
| Production and supply of pipeline routes (GAS DUCT). 23 ROUTES |
|
| Material: | W.Nr. 1.4306, W.Nr. 1.4541 |
| Weight: | 78 000 kg |
| The technical requirements: | ASME Code |
| Year of manufacture: | 2013 |
T
Core-Tech AS (AMOF FJELL, Norsk Energi) / Elkem
Destination: NORWAY  |
|
| Manufacturing of Dump Condenser D 1 300. | |
| Material: | W.Nr. 1.4301 / 1.4607 |
| Technical requirements: | EN 13 445 & PED 97/32/EC |
| Length / Height: | 4 300 mm / 2 800 mm |
| Weight: | 8 300 kg |
| Number of tubes in tube plate: | 1 755 pcs |
| Year of manufacture: | 2015 |
CHEMOPROJECT NITROGEN a.s.
Destination: ROMANIA  |
|
| Manufacturing of chimney (D = 3,2 m, L = 50 m) | |
| Material: | P355NL1 |
| Length: | 50 000 mm |
| Weight: | 66 000 kg |
| Diameter: | 3 200 mm |
| Year of manufacture: | 2014 – 2015 |
GEA Wiegand GmbH
| Destination: IRAQ |
|
| Manufacturing of SCRUBBER. Manufacturing according to ASME Sec. VIII Div. 1. (seaworthy packing) | |
| Material: | 304 L, TP304 L |
| Total Length: | 10 496 mm |
| Diameters of parts: | QUENCH 4 496 mm, TANK 6 000 mm |
| Weight: | 14 147 kg |
SKW Stickstoffwerke Piesteritz GmbH
Destination: GERMANY  |
|
| Manufacturing and installation of tank for HNO3 98 % (850 m3) | |
| Material: | W.Nr. 1.4361 (ANTINIT A611 BÖHLER) |
| Dimensions: | L = 10 000 mm, H = 11 000 mm, W = 29 000 kg |
| Year of manufacture: | 2013 / 2014 |
BIOCEL Paskov a.s.
| Manufacturing and installation of 4.level secondary regeneration technology. VENTURI WASHER and DROPLET SEPARATOR. |
|
| Material: | W.Nr. 1.4571, W.Nr. 1.4201 |
| Total weight: | 49 000 kg |
| Year of realization: | 2011 |
